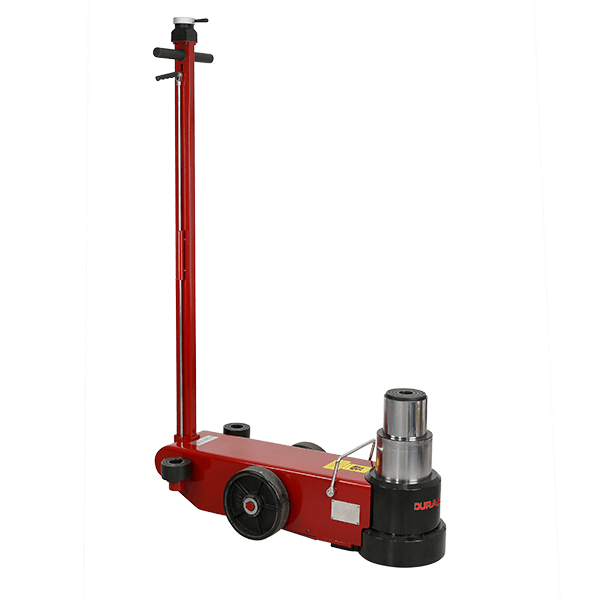

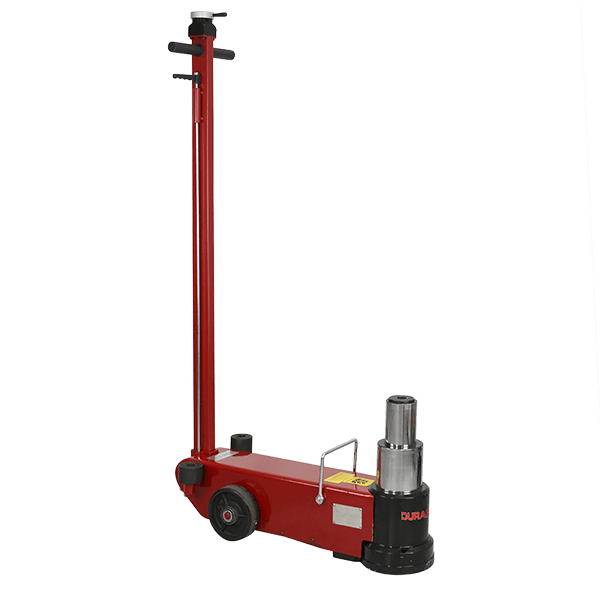

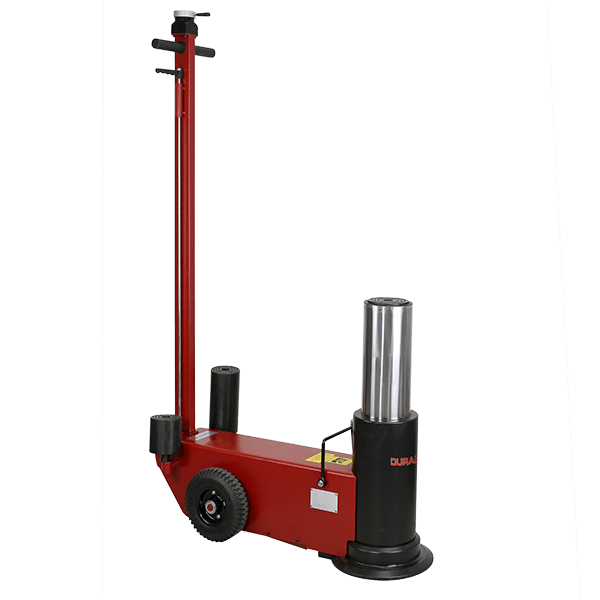

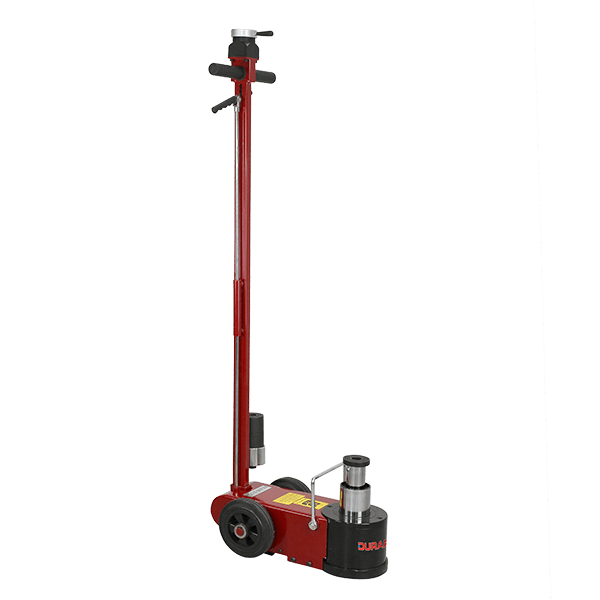

The ALJ series are air-over-hydraulic floor jacks for lifting trucks, buses, and industrial and agricultural vehicles wherever shop air is on hand.
Single-stage and multi-stage models cover a range of collapsed heights, from low-entry jacks that slide under a lowered axle to tall single-stage units with long stroke. A spring-loaded valve advances, holds or retracts the jack. A lowering valve controls descent speed, and the jack can’t drop if the airline is disconnected.
Each jack ships filled with oil and comes with two extension saddles. Replacement spares are available for all models.
Key Specifications
- Capacity: 30 – 80 ton
- Max. stroke: 139 – 311 mm; collapsed height 150 – 420 mm

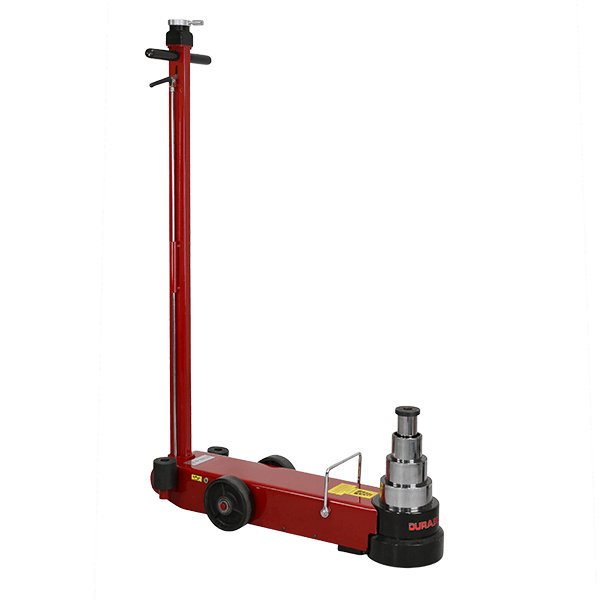

- Single to four-stage models (e.g. ALJ60-4-150: 60/40/22/11 ton)
- Air pressure range: 8 – 12 bar
- Weight: 38 – 126 kg
- Two extension saddles included; tilt handle locks in 3 positions
- CE certified to EN1494 (mobile or movable jacks)
