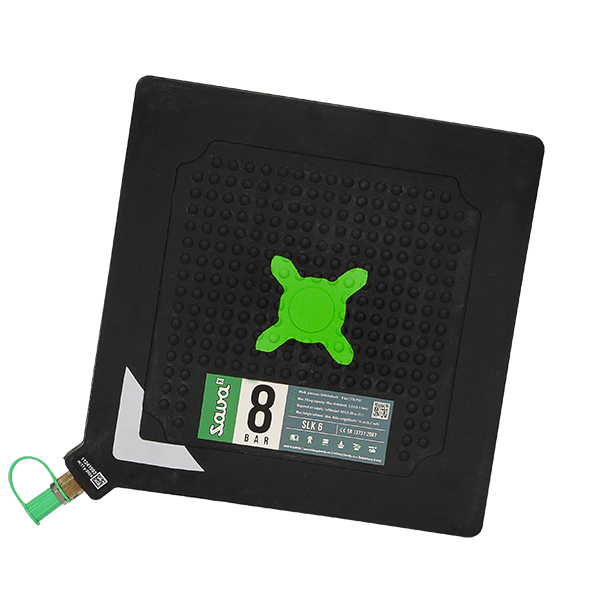

KPL air bags are thin, high-pressure lifting bags reinforced with Kevlar cord. At 25 mm thick they slide into gaps too tight for a jack, then inflate to lift, spread or stabilize a load.

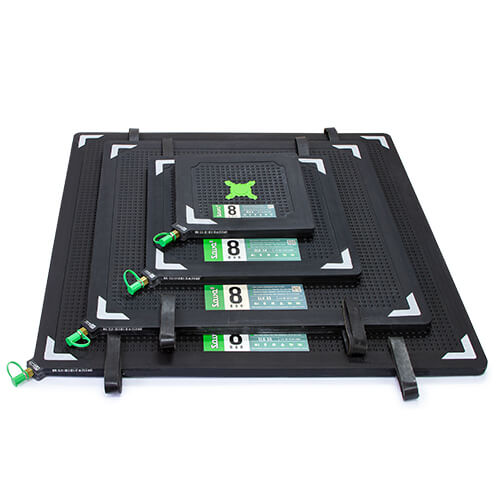

Eleven sizes cover capacities from 800 to 70,400 kg. Dimpled rubber faces grip the load, a reinforced edge protects the bag, and two bags can be stacked to gain lift height. Fittings are solid brass and the 1/4″-NPT air nipple is replaceable.
The bags are fireproof and antistatic. Single and dual controllers, hoses, Y-connectors, shut-off valves and a regulator are available to build a complete system.
Key Specifications
- Capacity: 800 to 70,400 kg across 11 models

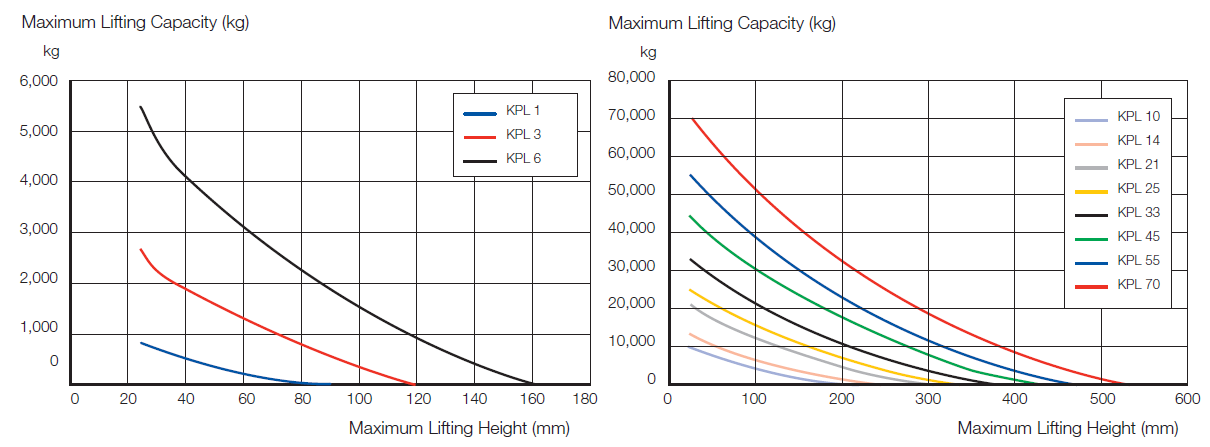

- Maximum lifting height: 80 to 520 mm
- Thickness 25 mm; insertion height 26 mm
- Maximum inflation pressure: 8 bar; minimum burst pressure: 32 bar
- Weight: 0.55 to 22.5 kg
- Kevlar cord reinforcing, dimpled faces, stackable two high; fireproof and antistatic

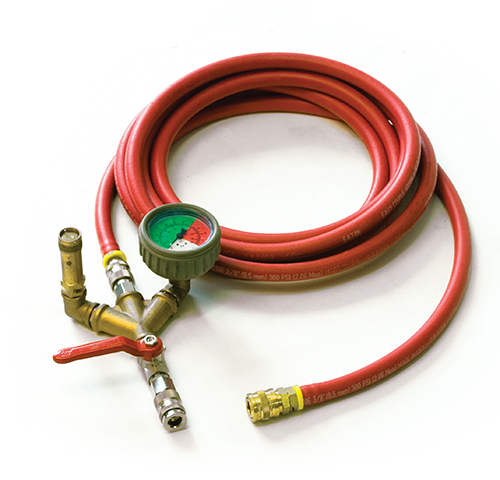

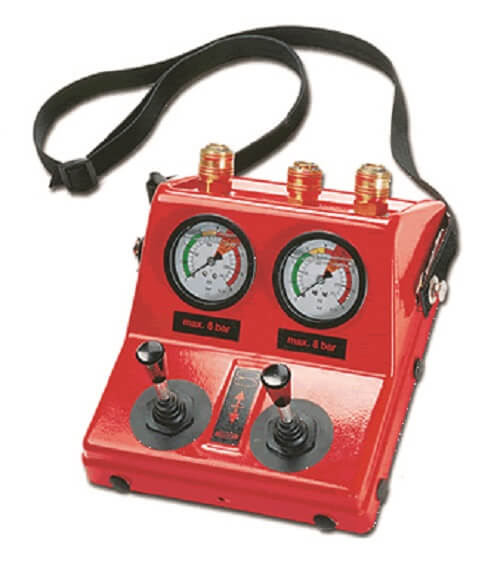

- Accessories: AB-1 to AB-5 controllers, ABC-1Y Y-connector, 5/10 m hoses, ABV shut-off valves, ABCR-1 regulator
