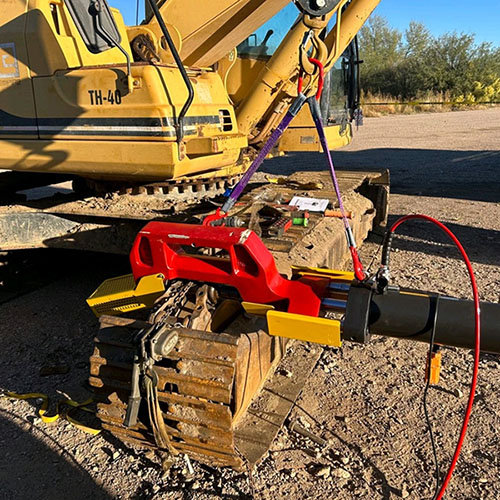

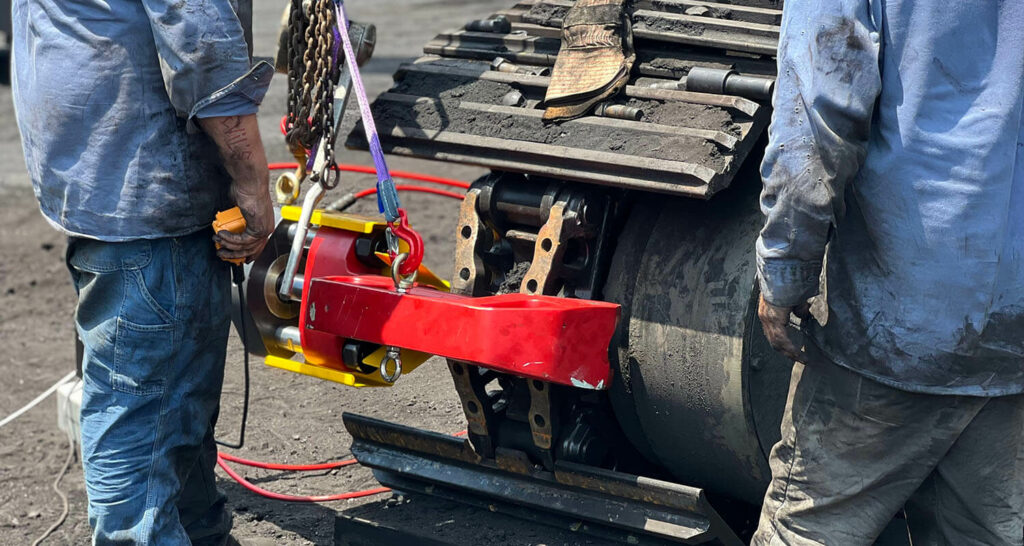

The TTP series are portable hydraulic presses for pushing out and installing track link pins on dozers, excavators, loaders and other tracked machines. They also handle drive wheels, rollers, bearings and shafts, in the field or in the workshop.

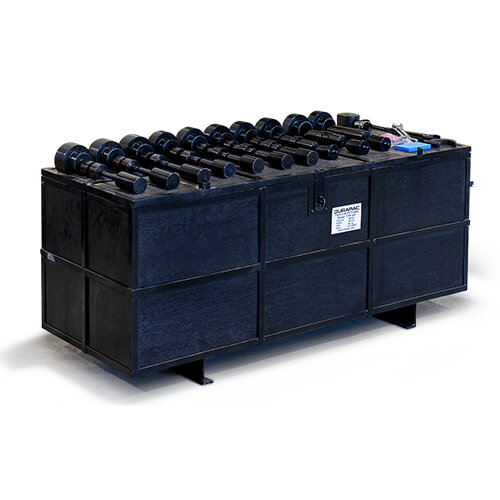

Each kit comes ready to work. It includes the 700 bar cylinder and cast alloy steel C-frame with steel guards, standard tooling sets marked with their pin sizes, a 20 T flat jack, hand tools, a seal kit, and a lever hoist with slings for positioning. It all packs into a wooden case.
Four sizes cover 50 to 200 ton, and they run from Durapac hand, electric, air or petrol pumps.
Key Specifications
- Capacity: 50 – 200 ton
- Stroke: 250 – 350 mm
- Max. operating pressure: 700 bar
- 4 – 10 standard tooling sets per model; track pin diameters from 19.3 mm to 73.9 mm across the range
- Weight (frame and cylinder): 85 – 630 kg

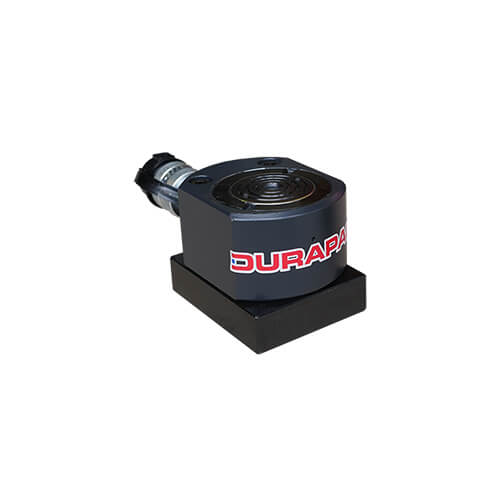

- Kit includes 20 T x 12 mm flat jack, lever hoist, slings, hand tools and wooden carry case
- Optional small pin group tooling for TTP-150 (TTP-150-SPGS)
