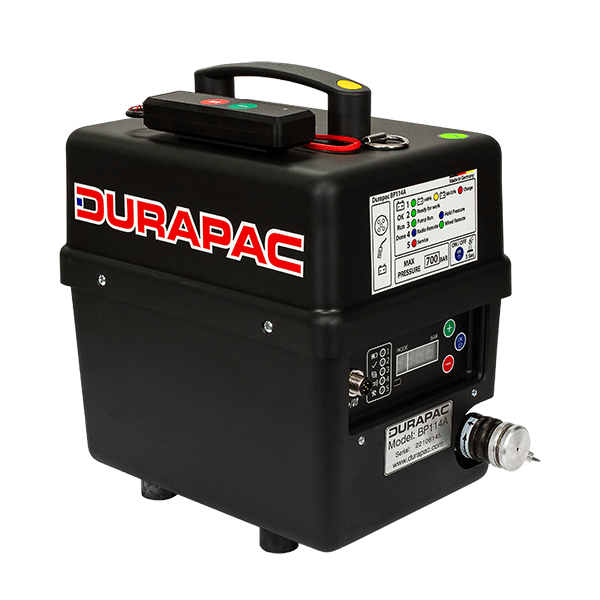

The BP Series are battery-powered hydraulic pumps for single-acting and double-acting tools rated at 700 bar: cylinders, crimpers, cutters, nut splitters and similar tools.
An internal battery is rated for a full working day, so crews can work away from power and air. Both models come with a Bluetooth remote, a corded remote and an external charger.
The BP150A adds a torque wrench mode, in semi-automatic or manual operation, so one portable unit can run double-acting hydraulic torque wrenches as well as general tools. Mode and pressure are set from the control panel.
Key Specifications
- Maximum operating pressure: 700 bar (850 bar on request)
- Flow at 700 bar: 0.42 Lpm (BP114A) / 0.97 Lpm (BP150A)
- Usable oil: 1,000 cc
- Motor peak power: 1,400 W (BP114A) / 4,000 W (BP150A)
- Dry weight: 7.15 kg (BP114A) / 9.00 kg (BP150A)
- Internal 50.4 VDC, 7.83 Ah battery; Bluetooth remote (10 m range) and 2.5 m wired remote
- BP150A adds torque wrench mode
