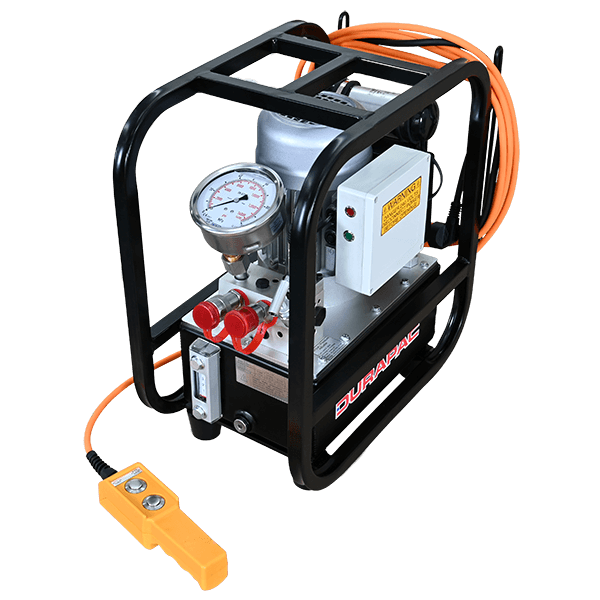

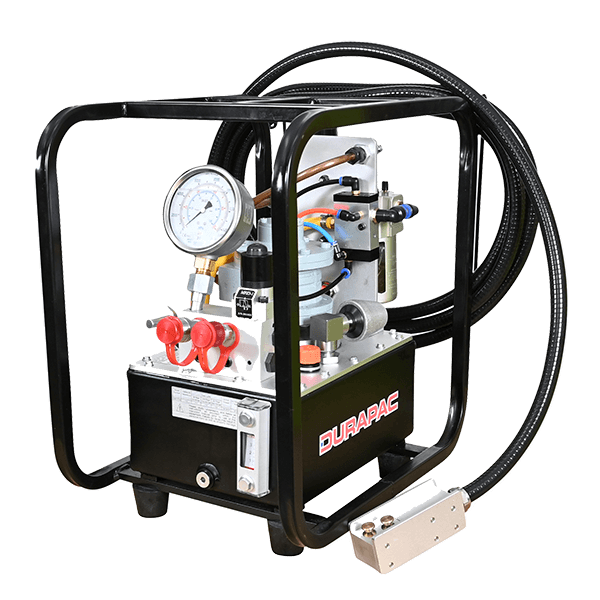

The DET (electric) and DAT (air) power units are built to drive Durapac’s TW and LPC hydraulic torque wrenches. A three-stage pump keeps cycle times short under load.
A fan-driven oil cooler lets the units run continuously on large bolting jobs. Torque is set with an adjustable control and read on a liquid-filled gauge.
Standard models run one or two wrenches at once. The DET-1114-4 runs up to four. A roll cage protects the unit and doubles as a carry frame, and a 6 m remote pendant is standard.
Key Specifications
- Maximum operating pressure: 700 bar
- Three-stage flow: 8.5 / 2.2 / 1.1 Lpm (DET); 7.0 / 1.6 / 0.8 Lpm (DAT)
- DET: 1.5 kW 230 V, 1 Ph, 50 Hz motor (115 V, 60 Hz version available)
- DAT: 2.7 kW Ingersoll Rand air motor with filter/lubricator
- Dry weight: 28.0 kg (DET) / 31.5 kg (DAT)
- Oil cooler, roll cage, 6 m remote pendant, liquid-filled gauge (1% accuracy)
- DET-1114-4 operates 1 – 4 tools at once
