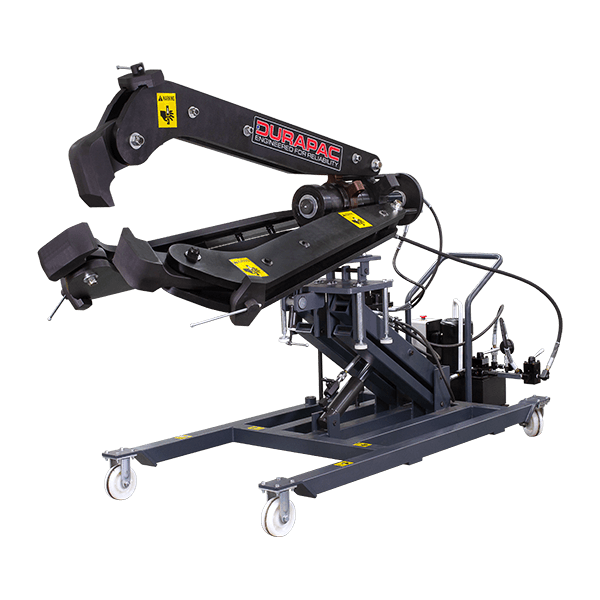

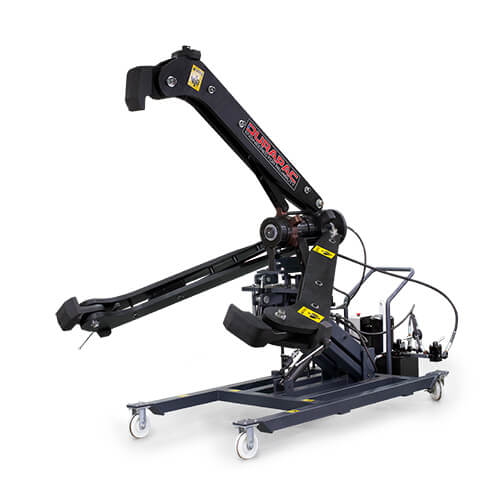

The DHP-100E is a 100 ton hydraulic puller for large, stubborn components: gears, pulleys, wheels, sleeves and press-fit parts.
It is mounted on a swivel-castor cart so one operator can move it into position, even in tight bays. Self-centering jaws convert between 2-way and 3-way setups and are held hydraulically so they stay on the part. 5° of vertical adjustment helps with setup.
An electric two-speed pump with a remote pendant gives steady, controlled force. Extensions are included for longer strokes.
Key Specifications
- Capacity: 100 ton
- Maximum operating pressure: 700 bar
- Maximum reach: 1,220 mm
- Spread range: 300 – 1,500 mm
- Stroke: 270 mm
- Electric pump: 1.12 kW, 220 V, 50/60 Hz
- Weight: 1,189 kg
