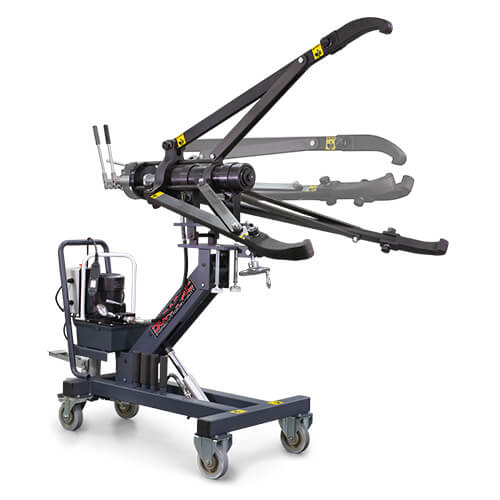

The DHP-50E is a 50 ton hydraulic puller for removing gears, pulleys, wheels, sleeves and other press-fit parts. One operator can set it up and run it.
It rides on a swivel-castor cart that rolls into place, and 5° of vertical adjustment helps with alignment. The jaws are self-centering, convert between 2-way and 3-way setups, and are held by a double-acting system so they don’t slip off the part.
An electric two-speed pump with a remote pendant controls the pull. Extensions are included for longer strokes.
Key Specifications
- Capacity: 50 ton
- Maximum operating pressure: 700 bar
- Maximum reach: 780 mm
- Spread range: 200 – 1,250 mm
- Stroke: 330 mm
- Electric pump: 0.45 kW, 220 V, 50/60 Hz
- Weight: 400 kg
