The DHS Series are hydraulic wedge spreaders for spreading, lifting and leveling. Four models cover light general-purpose work through heavy, tight-gap jobs.

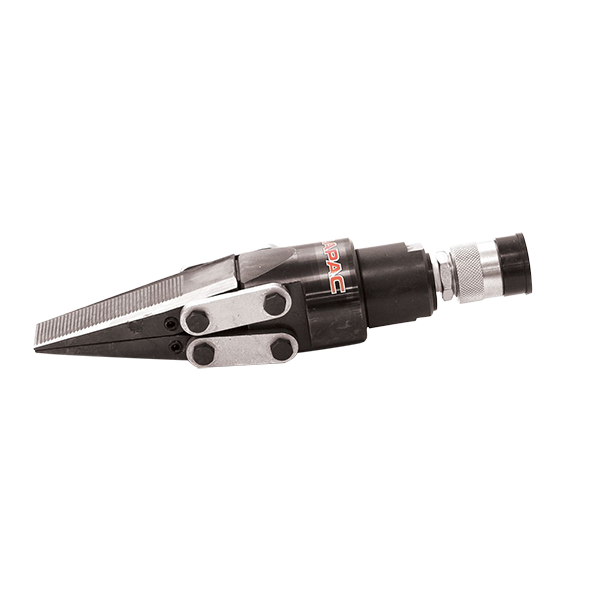

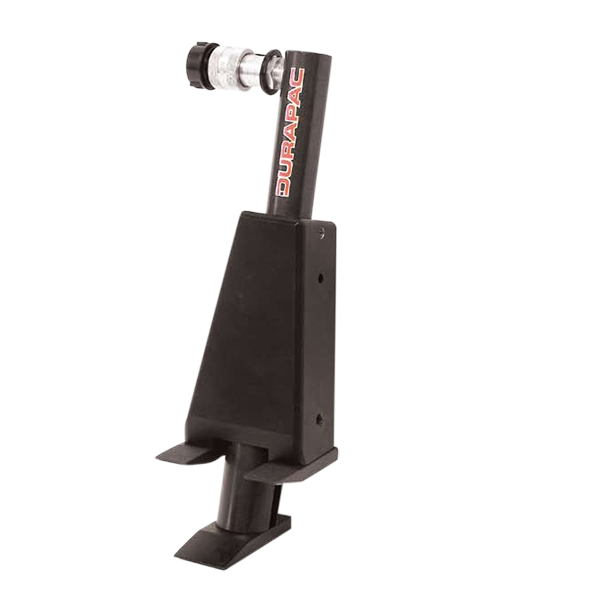

The DHS-05 and DHS-1 are general-purpose spreaders with a wide opening. The DHS-5 is built for flange spreading, with jaws that open parallel and hold position without creeping. The DHS-15 has serrated jaws and delivers 15 ton in a narrow gap.
All models are high-strength steel with a spring-return cylinder, and run from a 700 bar pump.
Key Specifications
- Capacity: 0.5 – 15 ton
- Spread range: 2.3 – 96.5 mm
- Maximum operating pressure: 700 bar
- Weight: 1.9 – 6.2 kg
- Spring-return cylinder; high-strength steel construction
- DHS-5 parallel-opening jaws for flanges; DHS-15 serrated jaws
