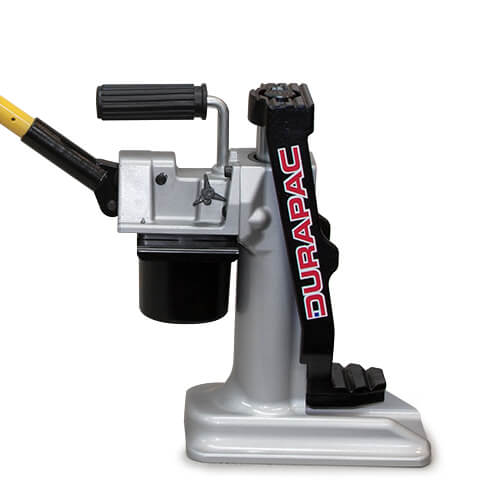

DRJ rail jacks are for lifting, aligning and gauging rail and sleepers (ties). Each one weighs about 20 kg, with a forged aluminum body and base that are light to carry and stable on soft ballast.
An internal oil bladder lets the jack work vertically or on its side. A spring return pulls the ram back once the load is off, and an internal relief valve protects against overloading. The low toe slides under the base of the rail.

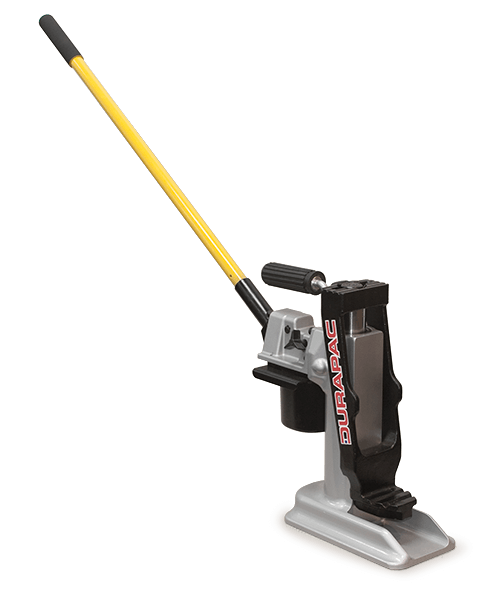

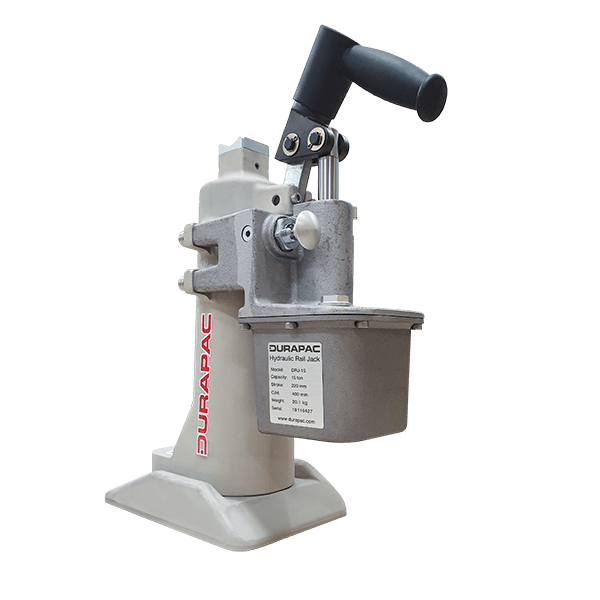

Both models include a removable extension handle. The DRJ-15 adds a quick-release valve for fast retraction.
Key Specifications
- Capacity: 10 / 15 ton nominal (83.3 / 150 kN)
- Stroke: 220 – 225 mm
- Min. base height: 50 mm (DRJ-10) / 47 mm (DRJ-15)
- Weight without handle: 20.2 kg / 20.1 kg
- Works horizontally or vertically; internal spring return and safety relief valve
- Forged 7075T aluminum base; removable 80 / 93 cm extension handle
