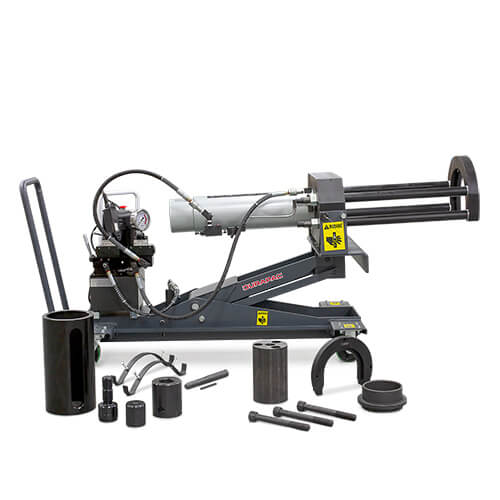

The DRP-100E removes and installs tapered roller bearings on railroad axle journals. It pulls at 100 ton and pushes bearings on at 68 ton with a double-acting cylinder.
The unit sits on a swivel-castor trolley with hydraulic height adjustment, so it can be lined up to the axle quickly. A two-speed 220 V electric pump with Advance-Hold-Retract control and a cable remote drives it, and a gauge shows applied pressure.
Accessory kits cover all common bearing classes, from Class B through GG, plus metric sizes.
Key Specifications
- Capacity: 100 ton pull / 68 ton push
- Stroke: 392 mm
- Maximum operating pressure: 700 bar

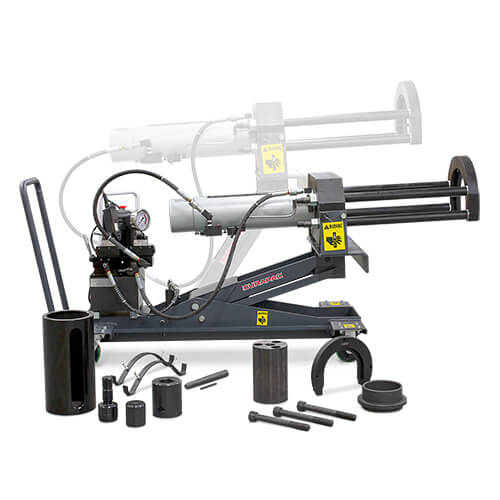

- Hydraulic height range: 387 – 1,047 mm
- Two-speed, double-acting 1.12 kW, 220 V, 50/60 Hz pump with cable remote
- Weight: 525 kg including power unit, oil, frame and standard accessories
- Bearing kits for Class B, C, D, E, EE, F, G, GG and metric 120 – 150 mm
