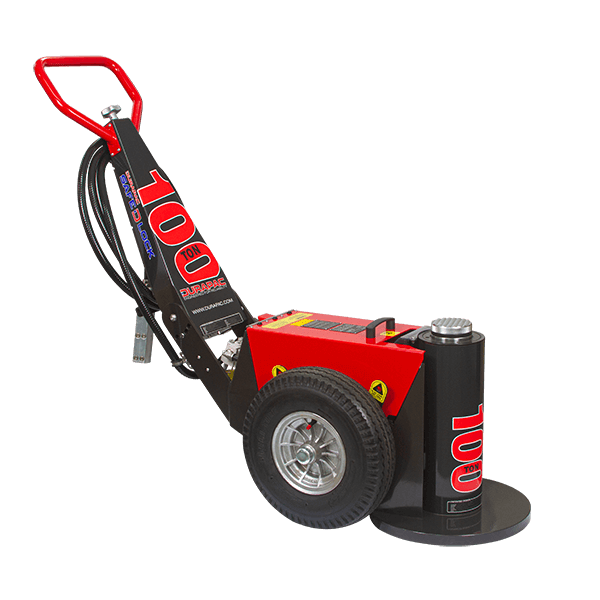

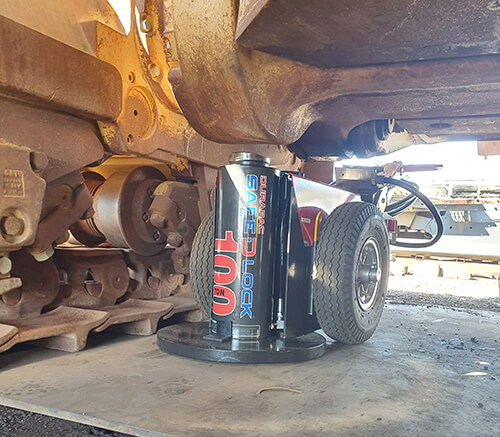

The Extra Compact SDL is a lower, narrower version of the Safe-D-Lock jack and vehicle stand. It was built for Cat dozers and other machines where the jacking point sits low and the space is tight.

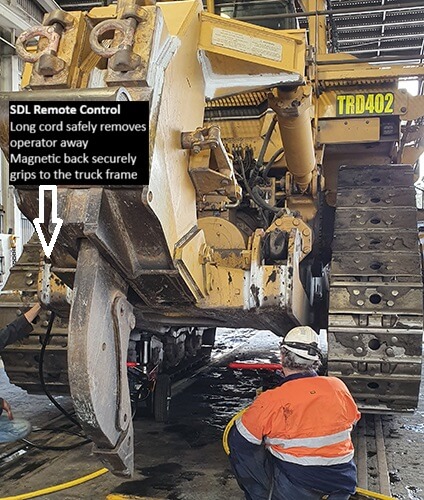

It keeps the standard SDL safety features: mechanical locks, a serrated steel load cap and an aluminum remote pendant on a 5 m hose that keeps the operator away from the load.

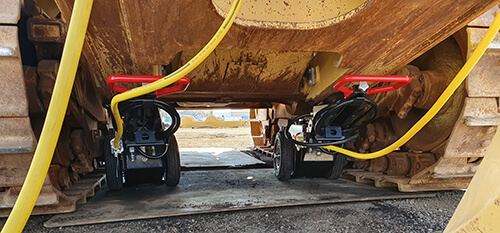

With a 550 mm collapsed height and 620 mm width, it fits where a full-size SDL won’t. Lifting eyes and forklift access make it easy to move between jobs.
Key Specifications
- Capacity: 100 tonne (110 US ton nominal)
- Stroke: 274 mm; max. lift height 1,250 mm (stand rating)
- Collapsed height 550 mm (incl. load cap); narrow width 620 mm
- Working air pressure 5.6 – 7.0 bar; air consumption 2,265 – 4,530 Lpm
- Weight: 320 kg
- Meets AS/NZS 2693:2007 (vehicle jacks) and AS/NZS 2538:2004 (vehicle support stands)
