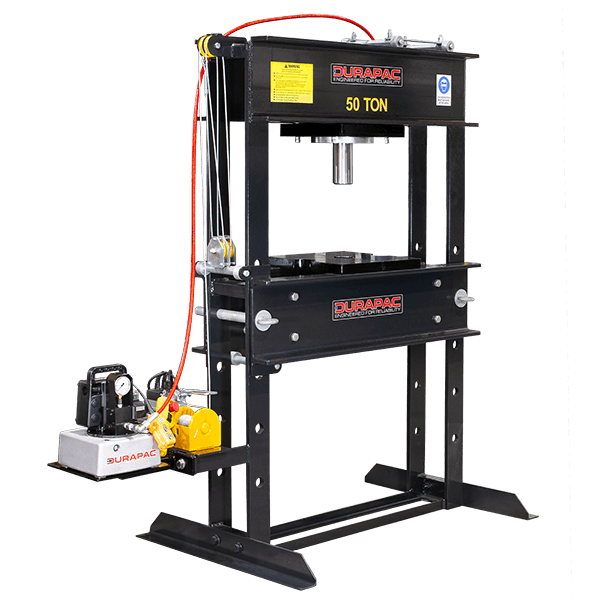

The HDP-Series presses are heavy-duty welded H-frames for large shop work: bearing installation and removal, electric motor repair, forming and bending.
Each press ships ready to work, with the frame, an electric/hydraulic power unit, cylinder, pressure gauge and an electric winch for raising and lowering the bed. A rolling head allows off-centre pressing, and the frame is built to take a full off-centre load.
The HDP-100 uses a double-acting cylinder. The HDP-50 comes single-acting as standard, with a double-acting option. Other power units, including air-driven or higher-flow versions, are available on request.
Key Specifications
- Capacity: 50 ton (HDP-50) and 100 ton (HDP-100)
- Stroke: 334 mm (HDP-50), 333 mm (HDP-100)
- Maximum operating pressure: 700 bar
- Power units: SPES4505NCL, 230V standard (HDP-50); PES3024, 400V / 3 Ph standard (HDP-100); other voltages by suffix
- Cylinders: RG-5013 single-acting (HDP-50), RD-10013 double-acting (HDP-100)
- Electric bed winch, rolling head, V-blocks, pressure gauge and remote pendant included
- Approx. weight: 665 kg (HDP-50), 1,180 kg (HDP-100)
