HPS hoses are high-pressure thermoplastic hoses for 700 bar (10,000 psi) jacking and tool systems. They meet the IJ100 American jacking specification and carry a 4:1 safety factor.
The hose has a polyester elastomer tube with aramid-fiber and steel-wire braids and an abrasion-resistant polyurethane cover. It is light and flexible, with a tight bend radius for hose reels and cramped work areas.

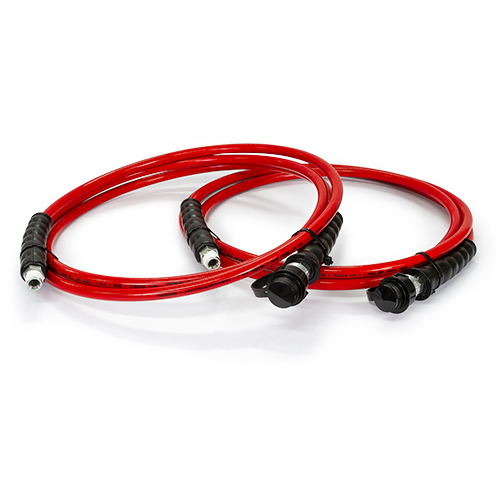

1/4″ hoses come in red, black or twin red/black for double-acting cylinders. 3/8″ hoses suit higher-flow work. All hoses have crimped fittings and bend restrictors, with thread or CH-6 coupler ends. An optional burst sleeve is available.
Key Specifications
- Bore sizes: 1/4" (HPS-06) and 3/8" (HPS-10)
- Working pressure: 700 bar / 10,000 psi; minimum burst 2,800 bar / 40,000 psi (4:1)
- Temperature range: -40 °C to +100 °C
- Lengths: 1 to 30 m
- Ends: NPT male threads, or CH-6 male couplers on one or both ends
- 1/4" colors: red, black or twin; 3/8" black only
- Optional hose burst sleeve (MSHA IC-359/01), add suffix 'S'
