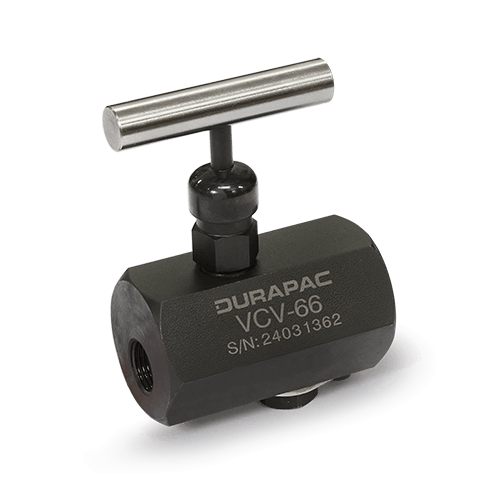

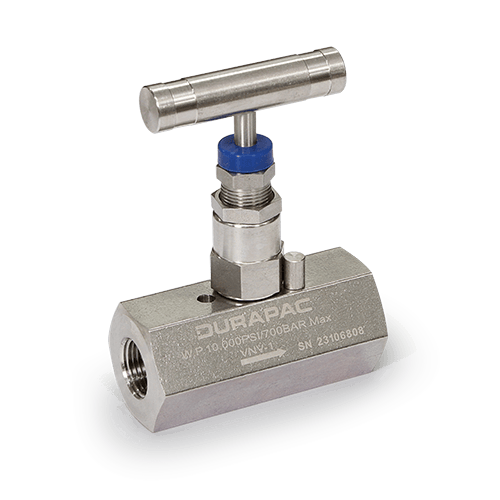

These valves give control over flow, pressure and load holding in a high-pressure hydraulic system. The range includes needle valves, load-lowering check valves with manual bypass, a pilot-operated check valve, an adjustable relief valve and a stainless ball valve.
The VCB-2 counterbalance valve gives smooth lifting and lowering of heavy loads with double-acting cylinders. The VCB-3 is a manifold version for Durapac power units.
For running several cylinders from one pump, VMN needle-valve manifolds come with 2 or 4 outlets in aluminum or steel. RM-7 return manifolds are also available.
Key Specifications
- Ports: mostly 3/8"-NPT female (VNV-2 is 1/4"-NPT)
- VRV-1 relief valve: adjustable 20 to 700 bar

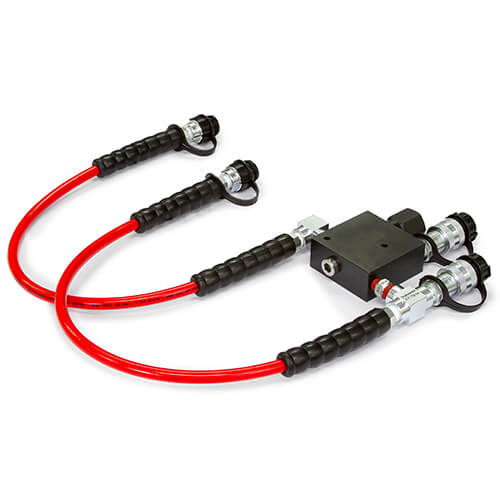

- VCB-2 / VCB-3 counterbalance valves: pilot pressure adjustable 130 to 207 bar

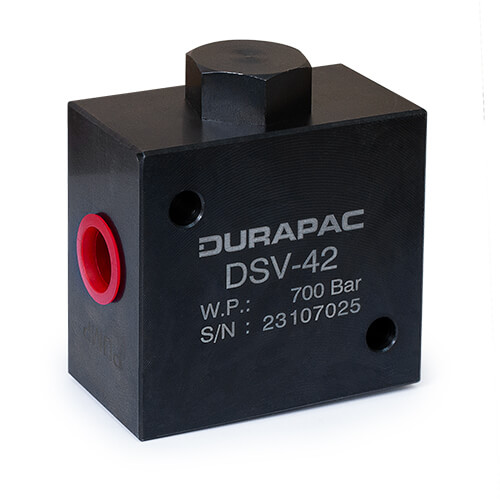

- DSV-42 pilot-operated check valve: 6.5:1 pilot ratio, cylinder mountable

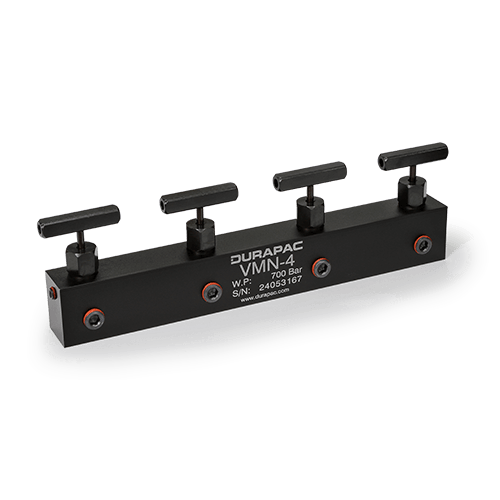

- VMN manifolds: 2 or 4 outlets, aluminum (VMN-2, VMN-4) or steel (VMN-2M, VMN-4M)
- RM-7S and RM-7L seven-port steel return manifolds
