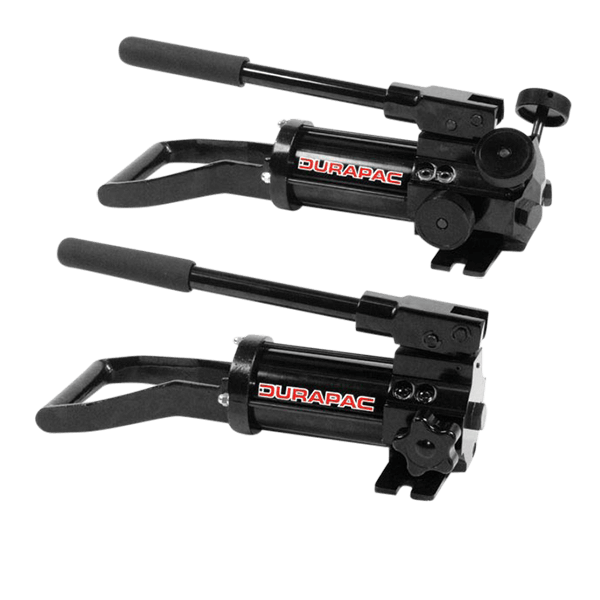

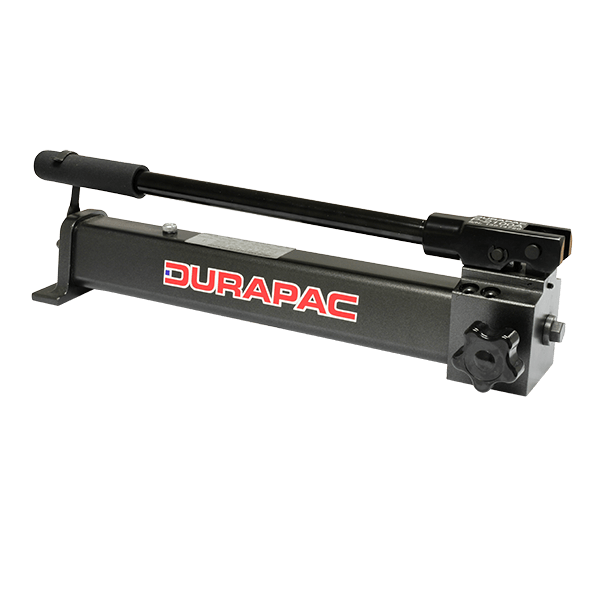

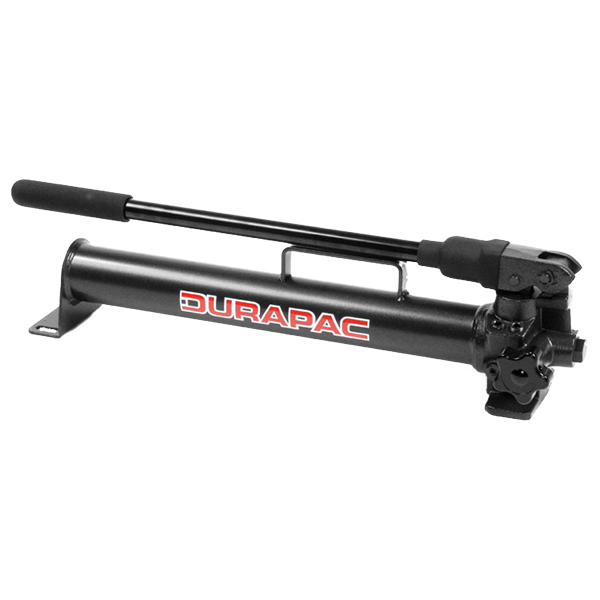

The P-Series is Durapac’s manual hand pump range, with steel and aluminum bodied models for single-acting and double-acting cylinders and tools. Most are two-speed: a fast first stage closes the gap, then the second stage builds pressure.
Use them where you need portable hydraulic power without a power source: jacking, pressing, spreading, and field repairs. Tank sizes run from compact to high-volume.

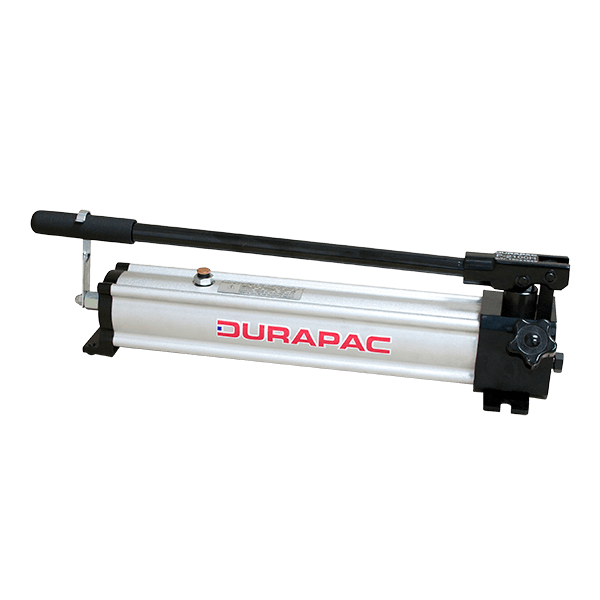

Every pump ships with oil and a factory-set safety relief valve. Low handle effort and large release knobs make them easy to work all day. The P-2100H reaches 40,600 psi for bolt tensioning and pressure testing.
Key Specifications
- Maximum working pressure: 3,480 / 10,150 / 40,600 psi, depending on model
- Usable oil capacity: 21.4 – 481 in³
- Weight with oil: 7.7 – 66.2 lb

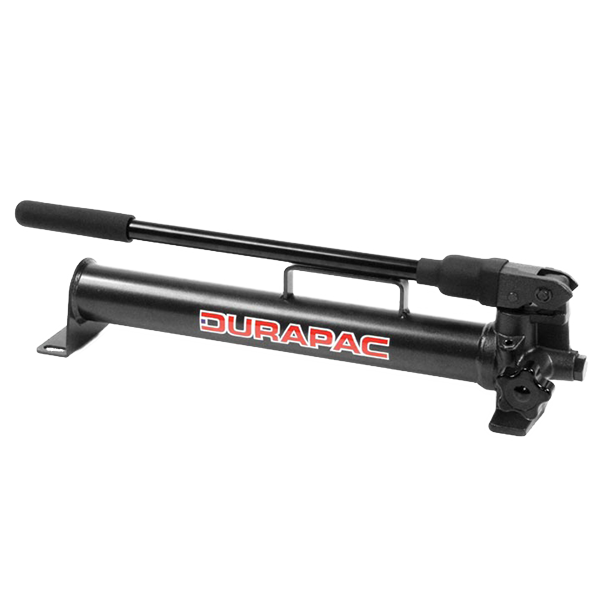

- Two-speed operation on most models; single-speed P-170
- Double-acting 4-way valve models: P-2200D, P-2200AD, P-2800D
- Maximum handle effort: 55.1 – 90.4 lb
- Factory-set safety relief valve; supplied filled with oil
