The PG-Series gauges let an operator see system pressure and control the load. Analog models have 63 to 150 mm faces, stainless steel cases and liquid filling for long life.

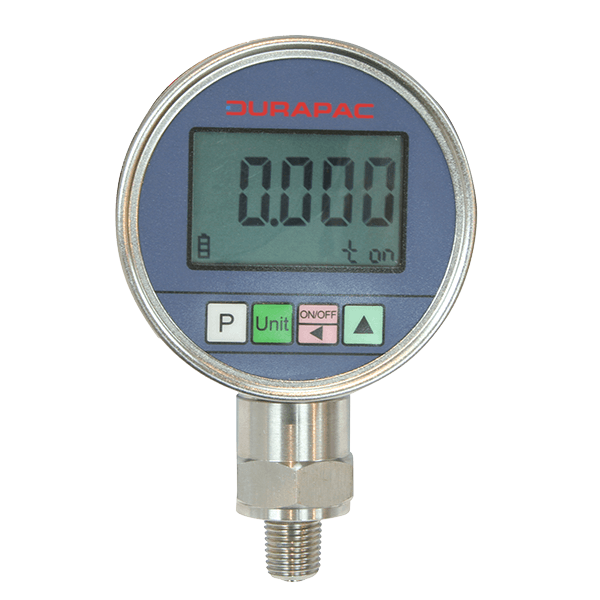

The PGD-75 is a battery-powered digital gauge. It can be programmed with a cylinder’s effective area and set to read force (kN, tonne, kg) or pressure (bar, psi), and it has peak hold.

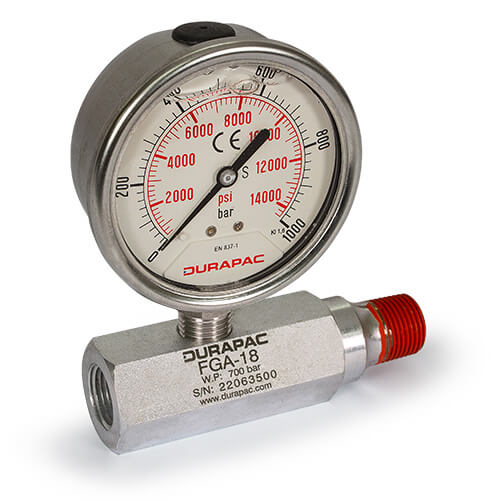

FGA adapters mount a gauge in line with a hose or cylinder, including angled versions. FGA-2 suits the ultra-high-pressure PG-100-40K and PG-100-60K gauges.
Key Specifications
- Standard gauges: 0-1,000 bar / 0-14,500 psi, 1/4"-NPT male (PG-63, PG-100, PG-150, PGD-75)

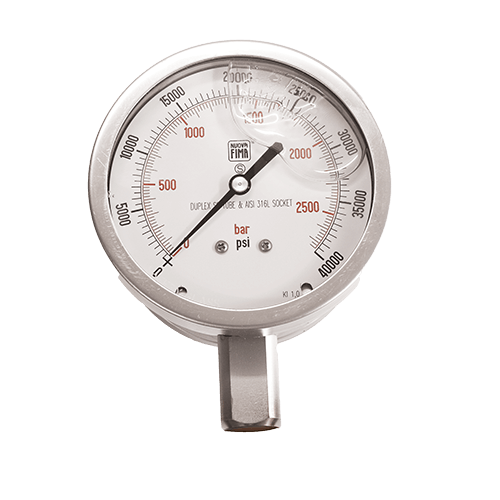

- High-pressure gauges: PG-100-40K (0-2,700 bar / 0-40,000 psi) and PG-100-60K (0-4,000 bar / 0-60,000 psi), 9/16"-18UNF female
- Face diameters: 63, 75, 100 and 150 mm
- Accuracy: 1% analog (PG-63: 1.6%); 0.25% digital PGD-75
- Stainless steel construction; analog models liquid filled

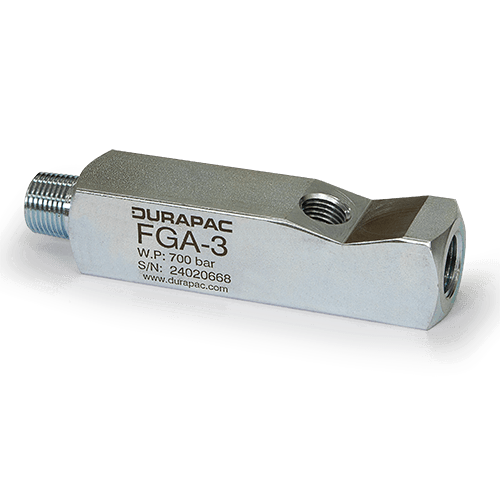

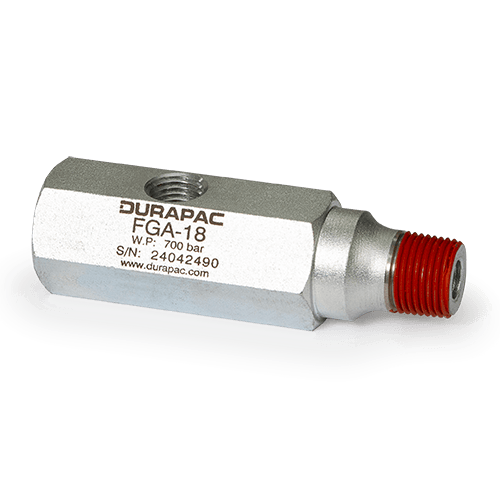

- Adapters: FGA-1 and FGA-3 (16-degree angle), FGA-18, FGA-2 (4,000 bar)
