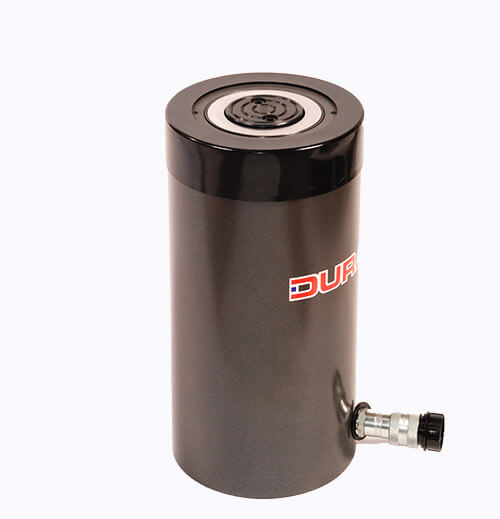

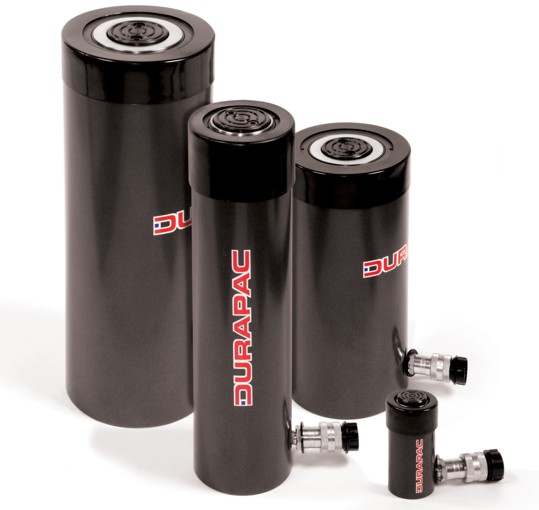

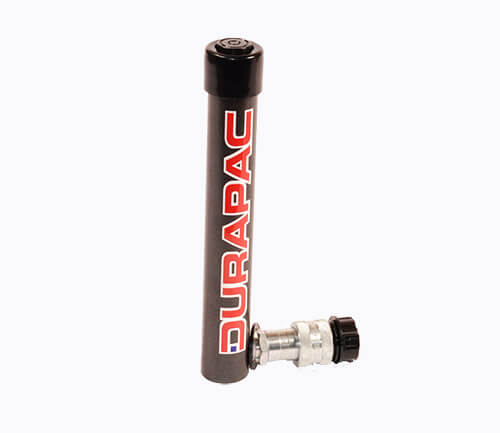

The RG Series is Durapac’s general purpose single-acting cylinder. A return spring retracts the piston rod once pressure is released, and the range runs from 5 to 100 ton with strokes up to 14.25 in.
Use it for jacking, pressing, fabrication and day-to-day maintenance. Most models have collar threads, piston rod threads and base mounting holes, so the cylinder can be fixed into a jig or fitted with clevises, bases and mounting blocks.

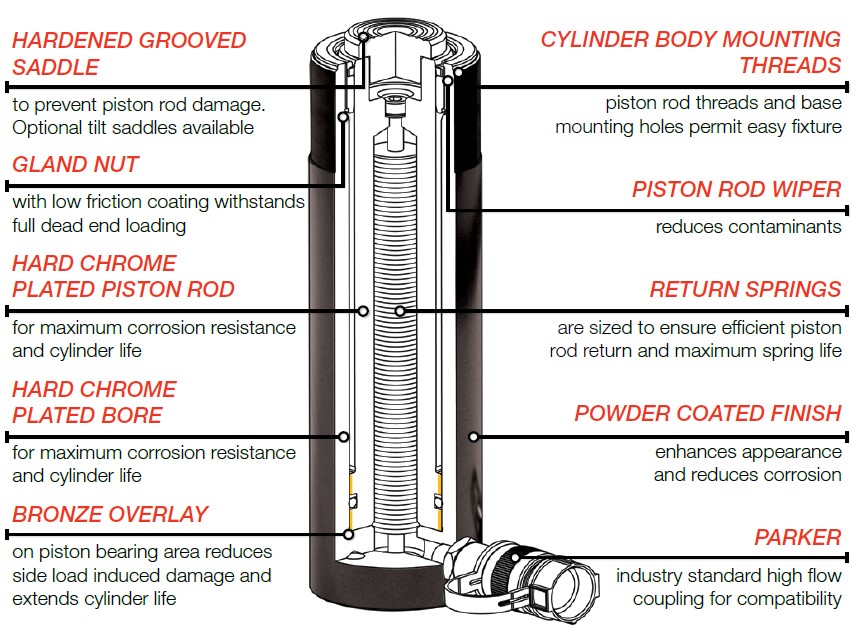

The bore and piston rod are hard chrome plated, and a bronze overlay on the piston bearing area helps the cylinder handle side loads.
Key Specifications
- Capacity: 5 to 100 ton (41 models)
- Stroke: 0.63 to 14.25 in
- Maximum operating pressure: 10,150 psi
- Weight: 2.2 to 160 lb
- Spring return; hardened grooved load cap
- Optional TSX tilt saddles for RG-102 to RG-10010
- Collar threads, piston rod threads and base mounting holes on most models
