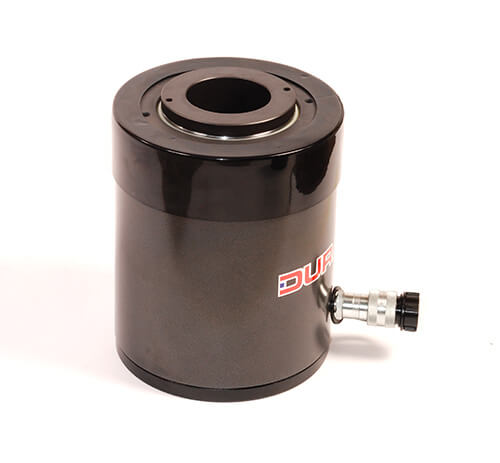

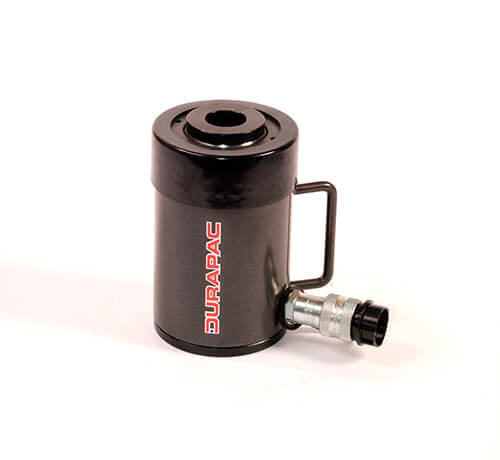

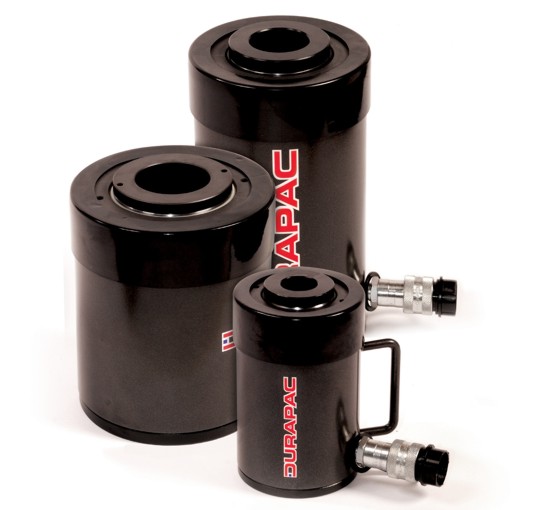

The RHS Series is a spring-return cylinder with a hollow piston rod. A rod or cable can pass through the full length of the body, so the cylinder can push or pull against it.
That makes it a fit for tensioning, load testing, bushing removal and general maintenance. Capacities run from 12 to 100 ton, with center holes from 0.77 in to 3.11 in.

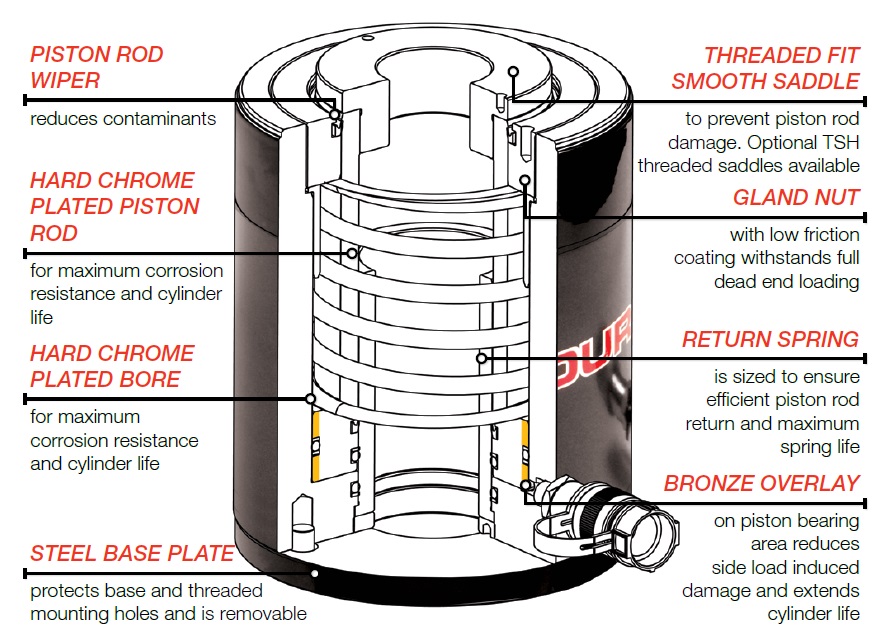

The bore and piston rod are hard chrome plated, the piston bearing area has a bronze overlay, and a removable bolt-on steel base plate protects the cylinder.
Key Specifications
- Capacity: 12 to 100 ton (15 models)
- Stroke: 0.31 to 6.13 in
- Maximum operating pressure: 10,150 psi
- Center hole diameter: 0.77 to 3.11 in
- Weight: 4.4 to 161 lb

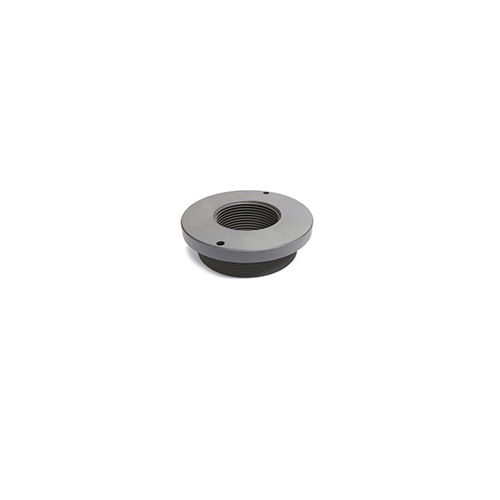

- Removable bolt-on steel base plate; optional TSH threaded load caps
- RHS-120 supplied with whip hose and CR-6 coupling
