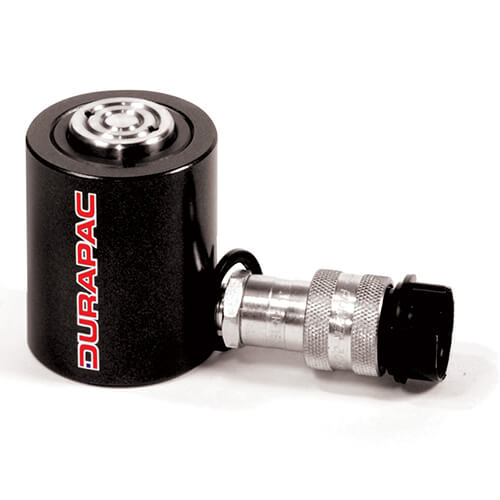

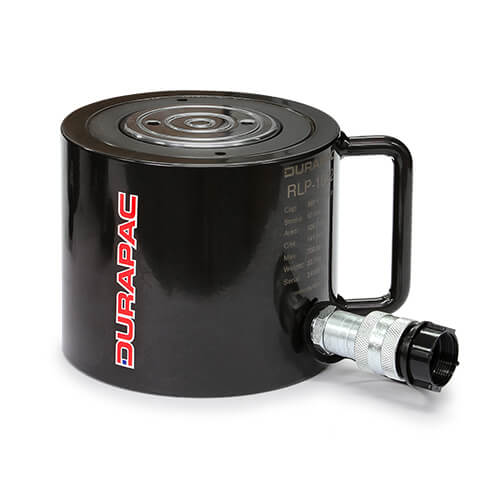

The RLP Series is a spring-return cylinder built short. Collapsed heights start at 3.47 in, yet stroke runs from 1.50 to 2.44 in, so it gets under a load that a standard cylinder can’t reach.
Crews use it in construction, mining and rail for jacking, weighing, testing, leveling and general maintenance. Five models cover 10 to 100 ton.

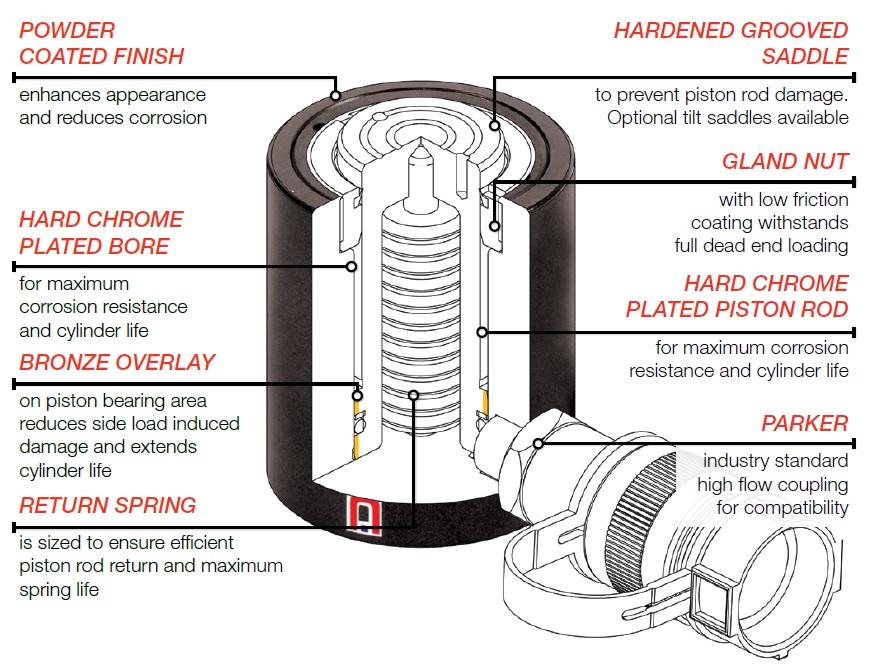

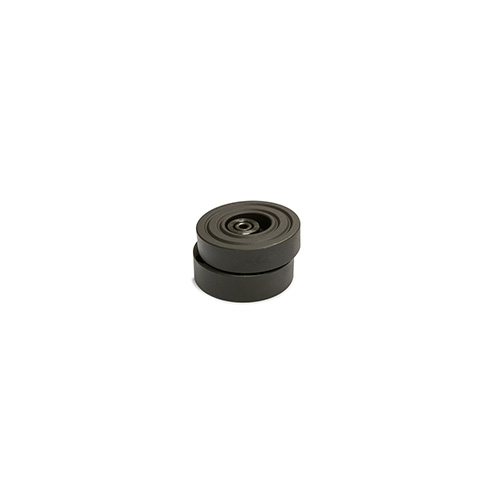

The bore and piston rod are hard chrome plated, the piston bearing area has a bronze overlay, and a hardened grooved load cap protects the rod. TSL tilt saddles are available for every model.
Key Specifications
- Capacity: 10 to 100 ton (5 models)
- Stroke: 1.50 to 2.44 in
- Collapsed height: 3.47 to 5.56 in
- Maximum operating pressure: 10,150 psi
- Weight: 6.0 to 50.0 lb
- Optional TSL tilt saddles for all models
