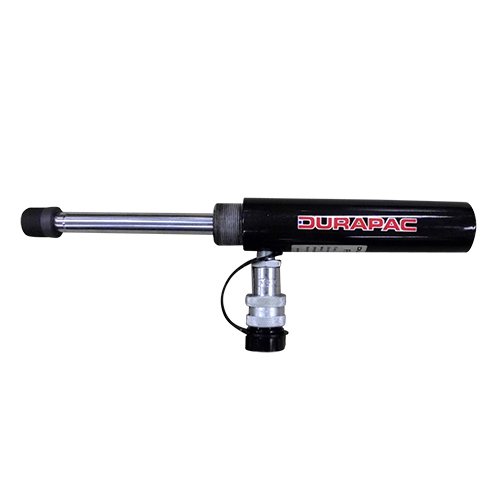

The RP Series is a small single-acting pull cylinder with spring return. It can be used in any position, which helps when the pull point is awkward to reach.

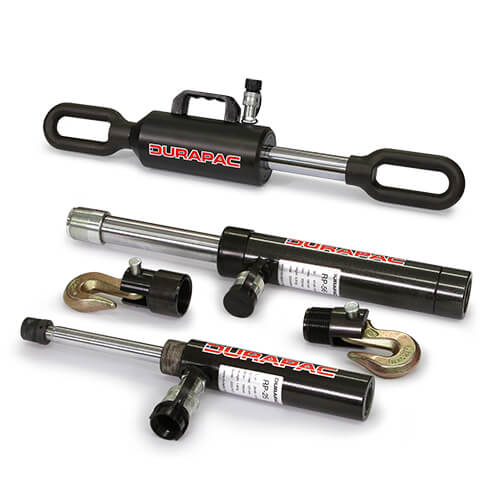

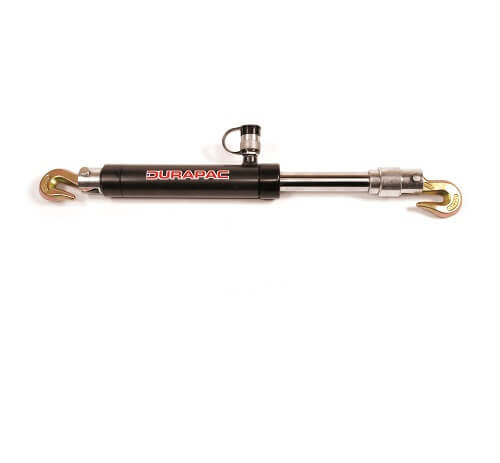

Two models are offered, 2.5 and 5 ton. The base and piston rod are threaded for attachments, and the 5 ton RP-56 comes with dual chain hooks.
A hard chrome steel piston rod resists scoring, and the high-flow coupling connects to Durapac pumps.
Key Specifications
- Capacity: 2.5 to 5 ton (2 models)
- Stroke: 127 to 154 mm
- Maximum operating pressure: 700 bar
- Weight: 1.8 to 5.2 kg (RP-56 with hooks 7.4 kg)
- Threaded base and piston rod for attachments
- Dual chain hooks standard on RP-56
