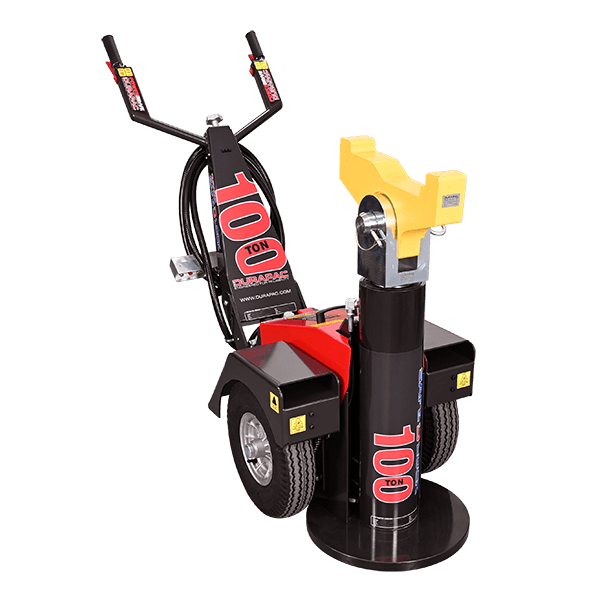

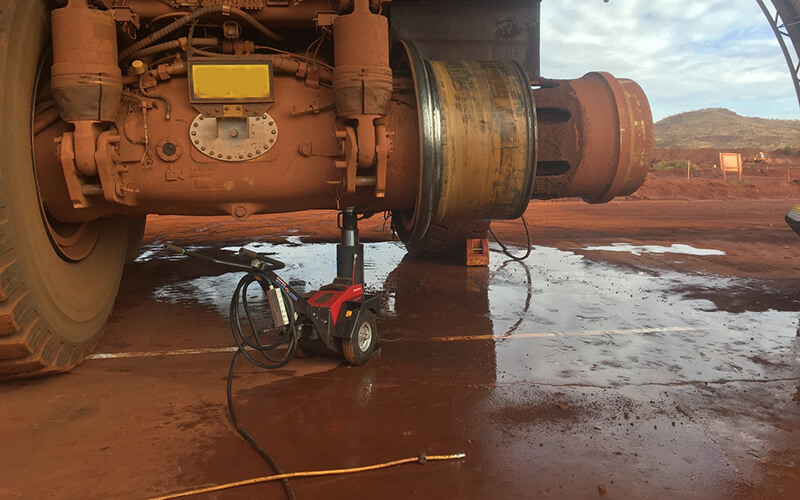

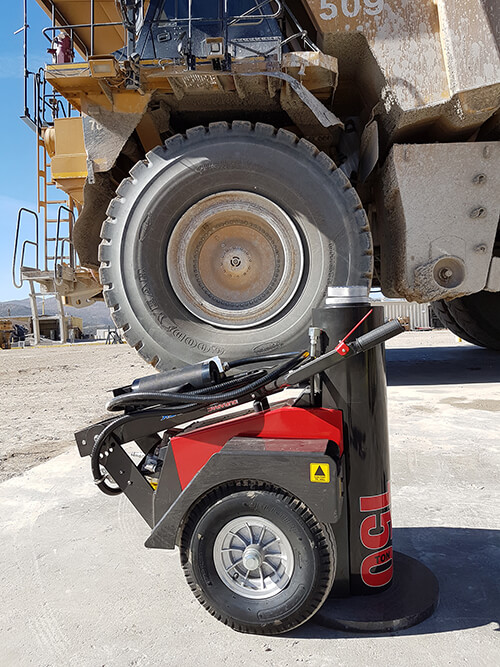

The SDL Safe-D-Lock is a combined lifting jack and rated vehicle support stand for heavy mining and earthmoving vehicles. It lifts on an air-driven hydraulic pump and holds the load on mechanical locks, so one unit does the job of a jack and a stand.

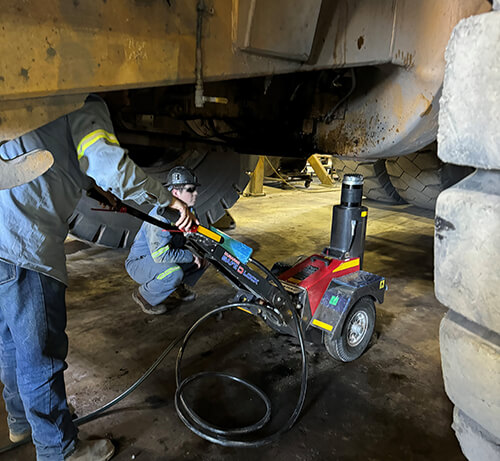

Internal quadrant locks are oil-bathed and spring loaded, engaging in 13 mm steps. The operator runs lift, lower and lock from a remote pendant on a 5 m hose, well clear of the load.

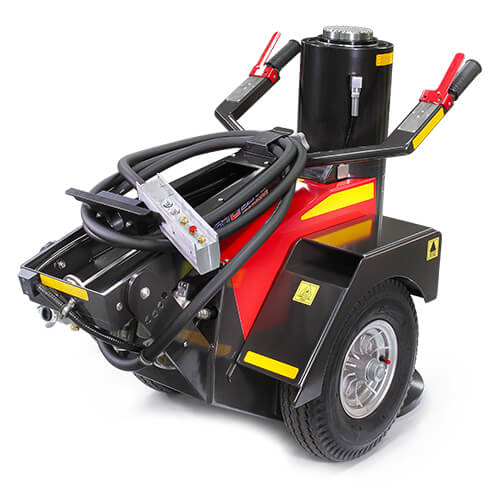

Powerdrive models add two battery-driven wheel motors, so the jack can be driven into position and up gentle slopes without a crew pushing it. Non-Powerdrive versions are also available.
Key Specifications
- Capacity: 70 – 181 tonne (77 – 200 US ton nominal)
- Stroke: 404 – 685 mm; max. lift height 1,408 – 1,680 mm (stand rating)
- Mechanical quadrant locks hold at least 3x rated capacity; lock in 13 mm increments
- Powerdrive: dual independent DC motors on two M18 batteries, self-propels up 5 degree slopes
- 3.9 kW Gast air motor; working air pressure 5.6 – 7.0 bar
- Weight: 390 – 550 kg
- Meets AS/NZS 2693:2007 (vehicle jacks) and AS/NZS 2538:2004 (vehicle support stands)
