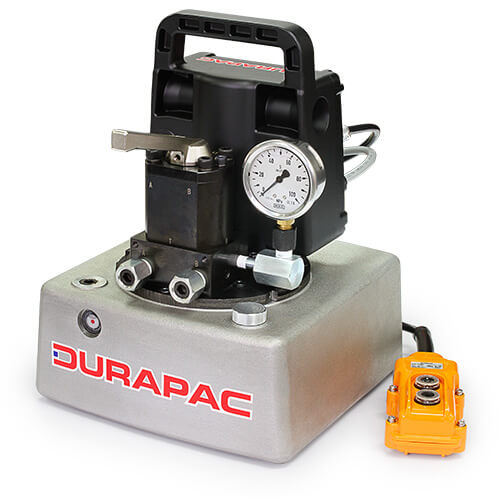

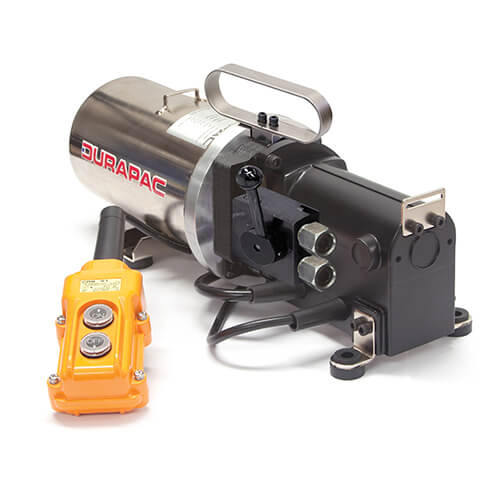

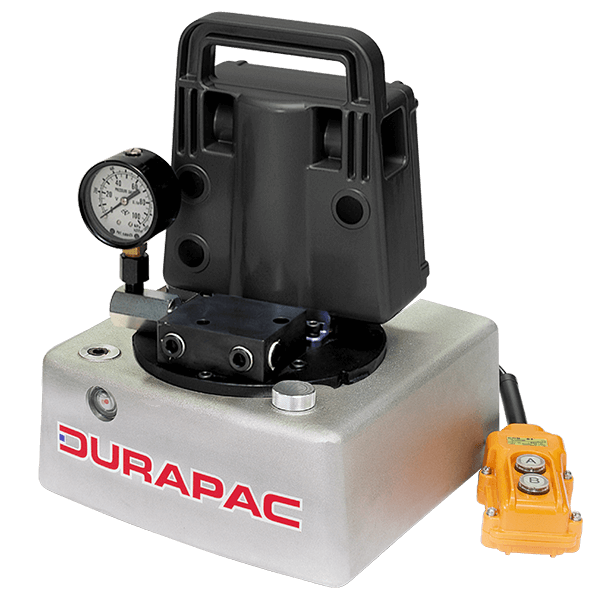

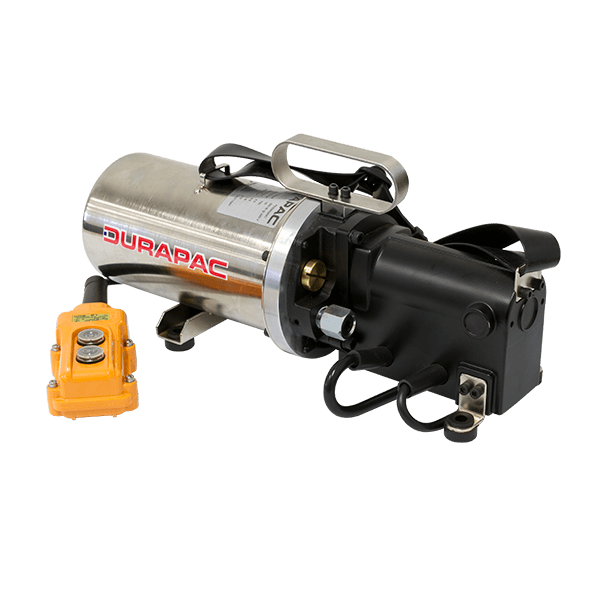

The SPE Series are compact electric hydraulic power units in two sizes. The 35 Series is the lightest option. The 45 Series has a larger reservoir, a stronger motor and a pressure gauge fitted as standard.
Both run single-acting or double-acting cylinders at up to 10,150 psi. Pick a manual valve or a solenoid valve, with pressure-hold or auto-retract functions to suit the job.
Low amp draw makes them practical on site power or indoors. A remote pendant comes standard, and a carry handle is built into the shroud.
Key Specifications
- Maximum operating pressure: 10,150 psi
- Motor: 0.47 hp (35 Series) / 0.60 hp (45 Series), single phase, 115 V or 230 V
- Flow at 10,150 psi: 12.2 in³ (35 Series) / 21.35 in³ (45 Series)
- Usable oil: 0.4 gal (35 Series) / 1.0 gal (45 Series; 0.5 gal tank optional)
- Weight: 18.5 – 48.4 lb
- Manual or solenoid directional valves for single- and double-acting cylinders
- 8 ft remote pendant standard; 2.48 in 0-14,500 psi gauge standard on 45 Series
