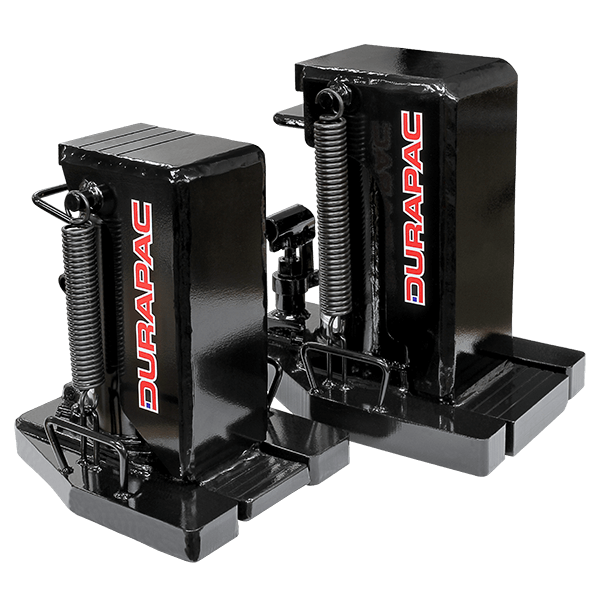

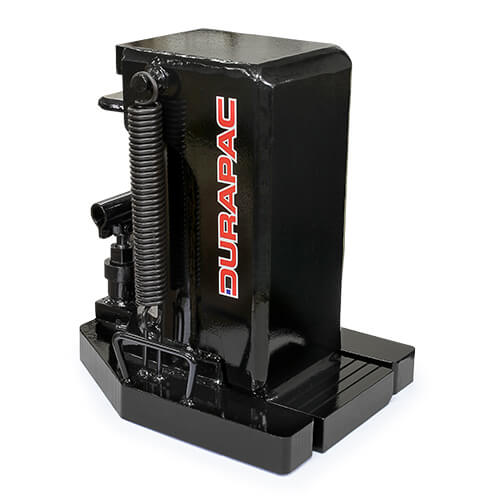

TJ toe jacks lift heavy machinery and equipment where clearance under the load is limited. The lifting toe gets under the load at 14 to 38 mm, depending on the model, and the jack does the rest.
The toe is made from high-strength alloy steel and the base is welded carbon steel. An internal stroke limiter stops the piston from over-extending, and all models except the TJ-2 have a spring-return piston.

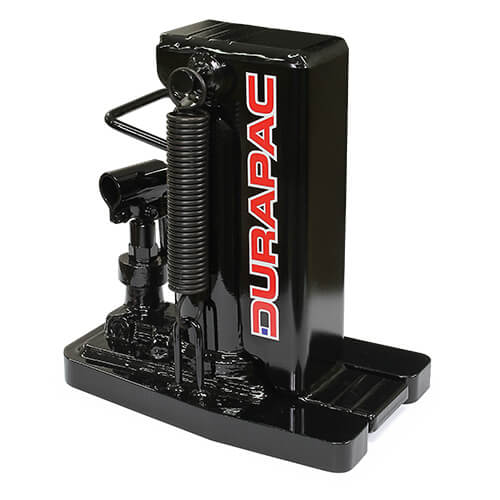

The TJ-5E and TJ-10E give a longer stroke, and on models up to 15 ton the pump handle rotates a full 360 degrees. An operating handle comes with every jack.
Key Specifications
- Capacity: 2 – 25 ton
- Stroke: 118 – 230 mm
- Min. toe height: 14 – 38 mm; collapsed height 235 – 420 mm
- Spring-return piston on all models except TJ-2
- 360 degree rotating pump handle on 2 – 15 ton models
- Weight: 9.0 – 80.0 kg
